Wood Patterned Fiber Cement Board 10X1250X2500 MM

Wood Patterned Fiber Cement Board 10X1250X2500 MM

by Costa Material
₡ 0,00 - ₡ 0,00
Register/login for Price
₡ 0,00 - ₡ 0,00
Sold out

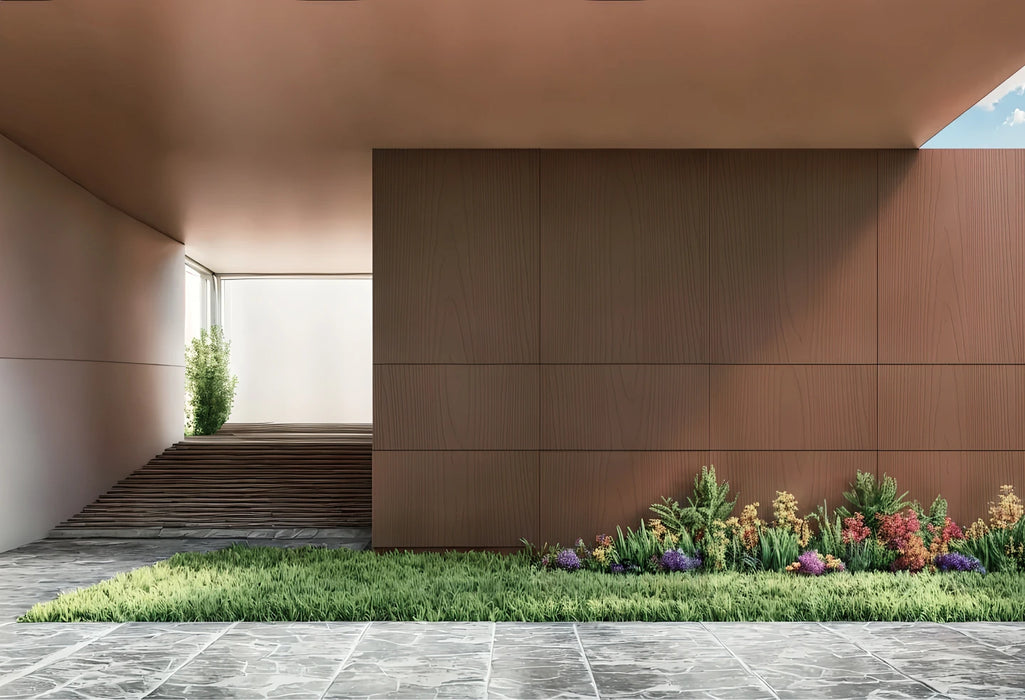

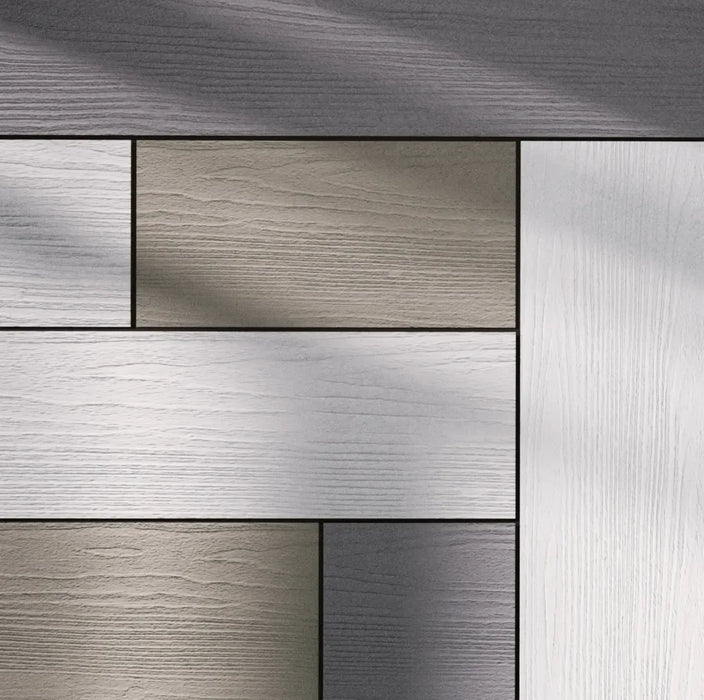

Ekobord Wood, with its prominent texture achieved through advanced production technology, brings the natural beauty of wood to building facades. It also enables the warmth of wood to be reflected on interior surfaces. Ekobord Wood, widely preferred, supports various painting techniques, such as patina, during application, offering facades a truly unique and captivating appearance.

Thickness

8 mm - 14 mm (in increments of 2 mm each)
Standard Production Sizes
1250 mm x 2500, 2800, 3000 mm

Production and custom cutting are tailored to meet project specifications.


Certified and tested.
Natural and odorless raw materials are used. No toxic gas emissions.
EN-Class A1 fireproof according to EN-13501-1. It prevents the spread of fire quickly.
Provides sound insulation.
Reduces energy costs.
Extends the life of the building.
High water repellency.
Withstands harsh climatic conditions
 Cyclic life is 87 cycles.

Technical Features

It was realized according to EN 12467 ISO quality management system.
Material Properties
Class A
Class B
Class D
Apparent Density (g/cm3)
~1,40
~1,35
~1,42
Flexural Strength (N/mm2) (MPa) (wet conditions)
≥7
≥7
-
Flexural Strength (N/mm2) >10
>10
>10
10
Modulus of Elasticity (N/mm2) (MPa)
>5500
>5000
>6000
Porozite (%)
~40
Coefficient of thermal conductivity - (W/m.K)
<0,20
<0,20
<0,26
Coefficient of Thermal Elongation - (mm/mK)
<0,005

Tolerances

Thickness
10% for plain sheets, -10% to +15% for patterned sheets
Width/Height (mm)
±3,75 / ±5
Edge Smoothness (%))
±0,1

Compliance with EN 12467 standard

Fire Resistance
A1
Water Impermeability
OK
Hot Water Test
OK
Freezing Strength
OK
Asbestos
NT type (non-asbestos) board

LOAD TRANSPORTATION TABLE

It was realized according to EN 12467 ISO quality management system.
L Support Clearance (mm)
L/50 Deflection Limit (mm)
Load Corresponding to L/50 Deflection Limit (kg)
Load per m² at L/50 deflection (kg/m²)
300         6         1112         2965
417         8           613         1175
625        13          519          664
900        18          205          182
1000      20         125           100
1200      24         119           79
1400      28         90             51
1600      32         91             46
2000      40         59             24
2200      44         45             16

The thickness of the fiber cement board used in the table is 15 mm. In accordance with TS 500, a safety coefficient of 1.6 was applied for the calculations presented in the table.
